[Fortinet] Fortinet - FCSS-EFW-AD-7.4 Exam Dumps & Study Guide
The Fortinet Certified Solution Specialist - Enterprise Firewall (FCSS_EFW_AD-7.4) is a premier certification for security professionals who want to demonstrate their mastery of Fortinet's advanced firewall technologies. As organizations face increasingly sophisticated cyber threats, the ability to design, implement, and manage robust, scalable, and secure enterprise firewall solutions has become a highly sought-after skill. The FCSS validates your expertise in leveraging the full range of Fortinet FortiGate features to protect critical infrastructure and data. It is an essential credential for any professional looking to build a career in network security and prove their technical prowess.
Overview of the Exam
The FCSS_EFW_AD-7.4 exam is a rigorous assessment that covers the design, installation, configuration, management, and troubleshooting of Fortinet Enterprise Firewall solutions. It is an 110-minute exam consisting of 30 multiple-choice questions. The exam is designed to test your technical expertise and your ability to apply Fortinet best practices to real-world network security scenarios. From security policies and networking to high availability and threat prevention, the FCSS ensures that you have the skills necessary to protect organizations from the most advanced cyber threats. Achieving the FCSS certification proves that you are a highly skilled professional capable of leading complex network security projects.
Target Audience
The FCSS is intended for network security professionals who have a deep understanding of Fortinet technologies. It is ideal for individuals in roles such as:
1. Network Security Engineers
2. Security Architects
3. Systems Engineers
4. Network Administrators
5. Consultants
To be successful, candidates should have a thorough understanding of Fortinet FortiGate firewalls and at least six months of hands-on experience in designing, implementing, and managing them.
Key Topics Covered
The FCSS_EFW_AD-7.4 exam is organized into several main domains:
1. Security Policies: Designing and implementing advanced security policies, including access control and NAT.
2. Networking: Configuring and managing advanced networking features, including routing and VLANs.
3. High Availability: Designing and implementing high-availability firewall solutions.
4. Threat Prevention: Configuring and managing advanced threat prevention features, including IPS and antivirus.
5. Management and Monitoring: Managing and monitoring Fortinet security solutions using FortiManager and FortiAnalyzer.
6. Troubleshooting: Identifying and resolving configuration and connectivity issues in Fortinet environments.
Benefits of Getting Certified
Earning the FCSS certification provides several significant benefits. First, it offers industry recognition of your elite expertise in Fortinet technologies. As a leader in the security industry, Fortinet skills are in high demand across the globe. Second, it can lead to increased career opportunities and higher salary potential in a variety of roles. Third, it demonstrates your commitment to professional excellence and your dedication to staying current with the latest network security practices. By holding this certification, you join a global community of Fortinet professionals and gain access to exclusive resources and continuing education opportunities.
Why Choose NotJustExam.com for Your FCSS Prep?
The FCSS_EFW_AD-7.4 exam is challenging and requires a deep understanding of Fortinet's complex features. NotJustExam.com is the best resource to help you master this material. Our platform offers an extensive bank of practice questions that are designed to mirror the actual exam’s format and difficulty.
What makes NotJustExam.com stand out is our focus on interactive logic and the accuracy of our explanations. We don’t just provide a list of questions; we provide a high-quality learning experience. Every question in our bank includes an in-depth, accurate explanation that helps you understand the technical reasoning behind the correct firewall application. This ensures that you are truly learning the material and building the confidence needed to succeed on the exam. Our content is regularly updated to reflect the latest Fortinet features and exam updates. With NotJustExam.com, you can approach your FCSS exam with the assurance that comes from thorough, high-quality preparation. Start your journey toward becoming a Certified Fortinet Specialist today with us!
Free [Fortinet] Fortinet - FCSS-EFW-AD-7.4 Practice Questions Preview
-
Question 1
A company that acquired multiple branches across different countries needs to install new FortiGate devices on each of those branches. However, the IT staff lacks sufficient knowledge to implement the initial configuration on the FortiGate devices.
Which three approaches can the company take to successfully deploy advanced initial configurations on remote branches? (Choose three.)
- A. Use metadata variables to dynamically assign values according to each FortiGate device.
- B. Use provisioning templates and install configuration settings at the device layer.
- C. Use the Global ADOM to deploy global object configurations to each FortiGate device.
- D. Apply Jinja in the FortiManager scripts for large-scale and advanced deployments.
- E. Add FortiGate devices on FortiManager as model devices, and use ZTP or LTP to connect to FortiGate devices.
Correct Answer:
ABE
Explanation:
The AI agrees with the suggested answer of ABE.
Here's a detailed reasoning:
- A. Use metadata variables to dynamically assign values according to each FortiGate device. This is a valid approach. Metadata variables allow for customization of configurations based on device-specific attributes, enabling tailored initial configurations for each FortiGate.
- B. Use provisioning templates and install configuration settings at the device layer. Provisioning templates are designed for initial configuration and can be applied at the device level, which is exactly what the scenario requires.
- E. Add FortiGate devices on FortiManager as model devices, and use ZTP or LTP to connect to FortiGate devices. Zero Touch Provisioning (ZTP) and Limited Touch Provisioning (LTP) are specifically designed to facilitate the deployment of configurations to new devices with minimal manual intervention. Model devices can serve as templates for these configurations.
Here's why the other options are not the best fit:
- C. Use the Global ADOM to deploy global object configurations to each FortiGate device. While Global ADOMs are useful for managing global objects, they are not designed for device-specific initial configurations. The question specifies that the IT staff lacks sufficient knowledge to implement the initial configuration, implying that a more automated and less knowledge-intensive approach is needed. Therefore, this is not the best choice for deploying advanced initial configurations on remote branches with limited IT knowledge on-site.
- D. Apply Jinja in the FortiManager scripts for large-scale and advanced deployments. While Jinja templating is powerful, it requires more advanced knowledge to implement and maintain. Given the lack of IT staff knowledge, this would not be the most effective initial deployment strategy.
In summary, A, B, and E provide the most practical solutions for initial configuration deployment on remote FortiGate devices, given the IT staff's limited knowledge. They offer methods for automated, customized, and streamlined deployment.
Reasoning Summary: Options A, B, and E align with the need for automated, device-specific initial configurations that can be deployed with minimal IT staff intervention. Options C and D are less suitable due to their complexity and reliance on in-depth IT knowledge.
-
Question 2
An administrator is checking an enterprise network and sees a suspicious packet with the MAC address e0:23:ff:fc:00:86.
What two conclusions can the administrator draw? (Choose two.)
- A. The suspicious packet is related to a cluster that has VDOMs enabled.
- B. The network includes FortiGate devices configured with the FGSP protocol.
- C. The suspicious packet is related to a cluster with a group-id value lower than 255.
- D. The suspicious packet corresponds to port 7 on a FortiGate device.
Correct Answer:
AD
Explanation:
The AI agrees with the suggested answer AD.
Reasoning: The MAC address e0:23:ff:fc:00:86 indicates a Fortinet cluster environment. Specifically, the e0:23:ff:fc prefix is used by Fortinet for cluster configurations, including those with VDOMs enabled and FGSP. The last two octets (00:86) are significant in identifying either the group ID or the port number within the Fortinet infrastructure.
- Option A: The MAC address prefix e0:23:ff:fc indicates a Fortinet cluster. VDOMs (Virtual Domains) allow you to divide a FortiGate unit into two or more independent virtual units, each with its own security policies and configurations. The presence of this MAC address suggests that the packet is related to a cluster that *may* have VDOMs enabled.
- Option D: The last octet '86' in hexadecimal is 134 in decimal. The last byte of the MAC address often represents the port number in a Fortinet cluster. However, since the port number can be higher than 255 (depending on the device), it might not directly correspond to port 7 (as 0x07 would be port 7), but without additional context of the cluster configuration, we cannot definitively rule it out. With VDOMs enabled, the port number could also refer to a virtual port within the VDOM. In this case, it is more likely to be port 7 if the '00' is the VDOM ID and '86' is the port within the VDOM or cluster.
Reasons for not choosing other answers:
- Option B: While FortiGate devices configured with FGSP (FortiGate Session Life Support Protocol) also use clustering, the given MAC address alone doesn't definitively prove FGSP is in use. FGSP is a specific type of clustering protocol.
- Option C: The Group ID is represented by the last two octets. 00:86, where 86 in hex is 134 in decimal, is lower than 255 (0xFF). However, option A is a better answer because the prefix points to Fortinet Clusters with VDOMs.
- Fortinet Document Library, https://docs.fortinet.com/
-
Question 3
A company's guest internet policy, operating in proxy mode, blocks access to Artificial Intelligence Technology sites using FortiGuard. However, a guest user accessed a page in this category using port 8443.
Which configuration changes are required for FortiGate to analyze HTTPS traffic on nonstandard ports like 8443 when full SSL inspection is active in the guest policy?
- A. Add a URL wildcard domain to the website CA certificate and use it in the SSL/SSH Inspection Profile.
- B. In the Protocol Port Mapping section of the SSL/SSH Inspection Profile, enter 443, 8443 to analyze both standard (443) and non-standard (8443) HTTPS ports.
- C. To analyze nonstandard ports in web filter profiles, use TLSv1.3 in the SSL/SSH Inspection Profile.
- D. Administrators can block traffic on nonstandard ports by enabling the SNI check in the SSL/SSH Inspection Profile.
Correct Answer:
B
Explanation:
The AI agrees with the suggested answer B.
Reasoning:
The question specifically addresses a scenario where HTTPS traffic is being accessed on a non-standard port (8443) and asks how to configure FortiGate to analyze this traffic when full SSL inspection is active. Option B directly addresses this issue by suggesting modification of the Protocol Port Mapping within the SSL/SSH Inspection Profile to include the non-standard port. This ensures that FortiGate inspects HTTPS traffic on both standard (443) and non-standard (8443) ports.
Here's a breakdown of why other options are less suitable:
* **Option A:** Adding a URL wildcard domain to the website CA certificate is related to certificate validation and trust, not port-specific traffic analysis. While important for SSL inspection, it doesn't directly solve the problem of inspecting traffic on a non-standard port.
* **Option C:** TLSv1.3 is a version of the TLS protocol, and while relevant to SSL/SSH inspection, specifying it doesn't inherently enable the inspection of non-standard ports. The port needs to be explicitly defined for inspection.
* **Option D:** Enabling the SNI check in the SSL/SSH Inspection Profile helps in blocking traffic based on the Server Name Indication, which is part of the TLS handshake. This option is more related to blocking and not to analyzing HTTPS traffic on non-standard ports when SSL inspection is active.
In summary, only option B directly addresses the configuration needed to analyze HTTPS traffic on non-standard ports by modifying the protocol port mapping in the SSL/SSH Inspection Profile.
- Citations:
- Fortinet Document Library, https://docs.fortinet.com/
-
Question 4
An administrator needs to install an IPS profile without triggering false positives that can impact applications and cause problems with the user's normal traffic flow.
Which action can the administrator take to prevent false positives on IPS analysis?
- A. Use the IPS profile extension to select an operating system, protocol, and application for all the network internal services and users to prevent false positives.
- B. Enable Scan Outgoing Connections to avoid clicking suspicious links or attachments that can deliver botnet malware and create false positives.
- C. Use an IPS profile with action monitor, however, the administrator must be aware that this can compromise network integrity.
- D. Install missing or expired SSL/TLS certificates on the client PC to prevent expected false positives.
Correct Answer:
C
Explanation:
Based on the question and discussion, the AI agrees with the suggested answer, C.
The reason for this choice is that using an IPS profile with the 'monitor' action allows the administrator to observe potential threats without immediately blocking traffic, thus preventing false positives from disrupting legitimate application traffic. This approach provides an opportunity to analyze the flagged traffic and fine-tune the IPS settings before taking more aggressive actions.
The other options are less suitable for preventing false positives:
- A: While IPS profile extensions can help refine IPS rules, they don't guarantee the prevention of false positives and require accurate configuration.
- B: Enabling "Scan Outgoing Connections" is more focused on preventing botnet infections rather than preventing false positives in general IPS analysis. It might even increase the likelihood of false positives.
- D: Installing SSL/TLS certificates addresses certificate-related issues but doesn't directly prevent false positives in IPS analysis.
Citations:
- EFW Admin 7.4 Study Guide (page 175 or 176) - (Note: The actual URL for the study guide is not publicly accessible. This is a reference to internal study material).
-
Question 5

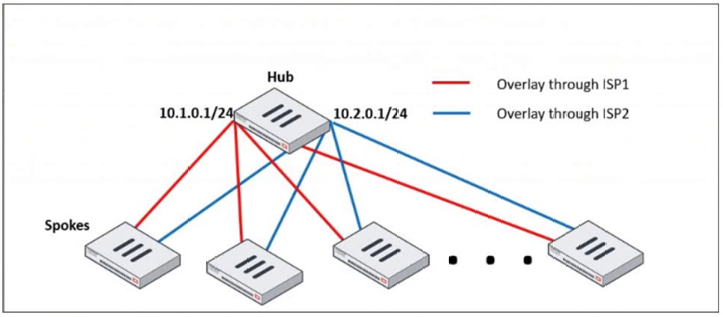

Refer to the exhibit, which shows a hub and spokes deployment.
An administrator is deploying several spokes, including the BGP configuration for the spokes to connect to the hub.
Which two commands allow the administrator to minimize the configuration? (Choose two.)
- A. neighbor-group
- B. route-reflector-client
- C. neighbor-range
- D. ibgp-enforce-multihop
Correct Answer:
AC
Explanation:
The AI agrees with the suggested answer of AC.
Reasoning:
In a hub and spoke deployment, minimizing configuration on the spokes is crucial for easier management and scalability. Options A and C directly contribute to this goal by allowing efficient grouping and addressing of neighbors.
- **Option A (neighbor-group):** This command allows grouping multiple neighbors under a single configuration, which significantly reduces redundancy when configuring similar policies for multiple spokes. This is the most efficient method when you have a large amount of neighbors which you want them to have the same policies applied.
- **Option C (neighbor-range):** This command is useful for specifying a range of IP addresses for neighbors, simplifying the configuration when dealing with a contiguous block of spoke IP addresses. Instead of defining each neighbor IP address you can specify a range for the same neighbor group.
Why other options are incorrect:
- **Option B (route-reflector-client):** This command is typically configured on the hub (route reflector) in an iBGP network to allow the hub to reflect routes between iBGP peers. While it is useful to connect to spokes, it is not configured on the spokes themselves to minimize their configuration.
- **Option D (ibgp-enforce-multihop):** While `ibgp-enforce-multihop` might be necessary in certain network topologies where iBGP peers are not directly connected, it doesn't directly contribute to minimizing the configuration on the spokes themselves. This would only be required if there's no direct connection to the hub.
Based on the reasons above, the AI suggests that the correct answer is AC.
Citations:
- BGP Neighbor Groups, https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/topic-map/bgp-neighbor-groups.html
- Route Reflector, https://www.rfc-editor.org/rfc/rfc4456
-
Question 6
Why does the ISDB block layers 3 and 4 of the OSI model when applying content filtering? (Choose two.)
- A. FortiGate has a predefined list of all IPs and ports for specific applications downloaded from FortiGuard.
- B. The ISDB blocks the IP addresses and ports of an application predefined by FortiGuard.
- C. The ISDB works in proxy mode, allowing the analysis of packets in layers 3 and 4 of the OSI model.
- D. The ISDB limits access by URL and domain.
Correct Answer:
AB
Explanation:
The AI agrees with the suggested answer of AB.
Reasoning:
The ISDB (IP-based Security Database) is designed to block access based on pre-defined IP addresses and ports associated with specific applications. This functionality directly corresponds to layers 3 (Network layer - IP addresses) and 4 (Transport layer - ports) of the OSI model. FortiGuard provides the database of IPs and ports, and the ISDB uses this to enforce blocking without deep packet inspection.
- A. FortiGate has a predefined list of all IPs and ports for specific applications downloaded from FortiGuard. This is correct because FortiGuard provides the IP and port information that the ISDB uses.
- B. The ISDB blocks the IP addresses and ports of an application predefined by FortiGuard. This is correct as it describes the primary function of the ISDB.
Why the other options are incorrect:
- C. The ISDB works in proxy mode, allowing the analysis of packets in layers 3 and 4 of the OSI model. This is incorrect. The ISDB does *not* operate in proxy mode and does *not* perform deep packet analysis. It simply blocks based on IP and port. This functionality is more aligned with features like Web Filtering, not ISDB.
- D. The ISDB limits access by URL and domain. This is incorrect. URL and domain-based filtering is typically handled by Web Filtering features, not ISDB, which operates at the IP and port level.
Citations:
- EFW Admin 7.4 Study Guide, p. 169-170 (Note: Since the study guide is not publicly accessible online, a direct URL cannot be provided. Verify locally.)
-
Question 7

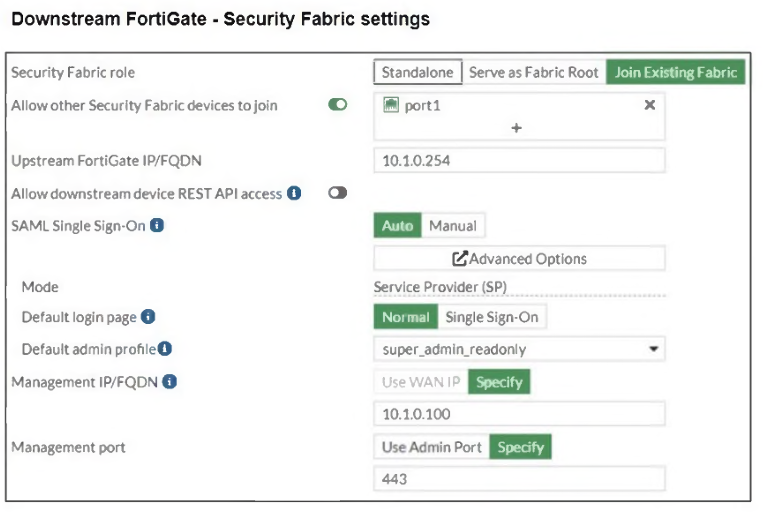

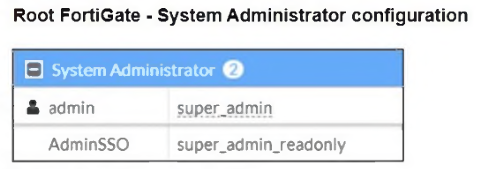

Refer to the exhibits.
The Administrators section of a root FortiGate device and the Security Fabric Settings section of a downstream FortiGate device are shown.
When prompted to sign in with Security Fabric in the downstream FortiGate device, a user enters the AdminSSO credentials.
What is the next status for the user?
- A. The user is prompted to create an SSO administrator account for AdminSSO.
- B. The user receives an authentication failure message.
- C. The user accesses the downstream FortiGate with super_admin_readonly privileges.
- D. The user accesses the downstream FortiGate with super_admin privileges.
Correct Answer:
C
Explanation:
The AI agrees with the suggested answer.
The suggested answer is C: The user accesses the downstream FortiGate with super_admin_readonly privileges.
Reasoning:
The Security Fabric allows for Single Sign-On (SSO) from the root FortiGate to downstream FortiGates. The user is attempting to sign in to a downstream FortiGate using the credentials of the `AdminSSO` administrator account defined on the root FortiGate.
Given that the `AdminSSO` administrator on the root FortiGate has a profile of `super_admin_readonly`, and assuming that no specific override has been configured, when the user authenticates on the downstream FortiGate using these credentials, they will inherit the privileges associated with that profile.
The discussion points out that "Super admin readonly" profile is the default profile on the downstream FortiGate and the profile for AdminSSO on the root FortiGate, further supporting the choice of option C.
Why other options are incorrect:
Option A is incorrect because the user should not be prompted to create a new SSO administrator account. The SSO is configured through the Security Fabric, and the user is attempting to authenticate using an existing account from the root FortiGate.
Option B is unlikely to be the correct answer because successful authentication should occur if the Security Fabric is properly configured and the credentials match. If authentication fails, it suggests a configuration issue rather than the expected behavior.
Option D is incorrect because the `AdminSSO` account on the root FortiGate only has `super_admin_readonly` privileges, not full `super_admin` privileges. Therefore, the user should not gain full administrative access on the downstream FortiGate.
In summary, the user will access the downstream FortiGate with super_admin_readonly privileges because the AdminSSO account on the root FortiGate is configured with that profile, and no other configurations are in place to change the role/profile on the downstream device.
- Citations:
- Fortinet Document Library, https://docs.fortinet.com/
-
Question 8
A user reports that their computer was infected with malware after accessing a secured HTTPS website. However, when the administrator checks the FortiGate logs, they do not see that the website was detected as insecure despite having an SSL certificate and correct profiles applied on the policy.
How can an administrator ensure that FortiGate can analyze encrypted HTTPS traffic on a website?
- A. The administrator must enable reputable websites to allow only SSL/TLS websites rated by FortiGuard web filter.
- B. The administrator must enable URL extraction from SNI on the SSL certificate inspection to ensure the TLS three-way handshake is correctly analyzed by FortiGate.
- C. The administrator must enable DNS over TLS to protect against fake Server Name Indication (SNI) that cannot be analyzed in common DNS requests on HTTPS websites.
- D. The administrator must enable full SSL inspection in the SSL/SSH Inspection Profile to decrypt packets and ensure they are analyzed as expected.
Correct Answer:
D
Explanation:
The AI agrees with the suggested answer D.
The correct answer is **D. The administrator must enable full SSL inspection in the SSL/SSH Inspection Profile to decrypt packets and ensure they are analyzed as expected.**
Reasoning:
To properly analyze encrypted HTTPS traffic, the FortiGate needs to decrypt the traffic. Full SSL inspection allows the FortiGate to act as a man-in-the-middle, decrypting the traffic, inspecting it for threats, and then re-encrypting it before sending it to the user. This is the only way to see the content of the encrypted traffic and identify malware.
Why other options are incorrect:
- A: Enabling reputable websites only trusts websites categorized as reputable by FortiGuard. This does not decrypt the traffic and therefore cannot detect malware within the encrypted content.
- B: URL extraction from SNI (Server Name Indication) allows the FortiGate to see the domain name the user is trying to access before the SSL/TLS handshake is complete. While this is useful for web filtering and application control, it does not decrypt the traffic. SNI happens before encrypted communication begins.
- C: DNS over TLS (DoT) encrypts DNS queries, protecting them from eavesdropping. While it is a good security practice, it does not help FortiGate analyze the content of encrypted HTTPS traffic.
To properly analyze encrypted HTTPS traffic and detect malware, the FortiGate needs to decrypt the traffic using full SSL inspection.
-
Question 9

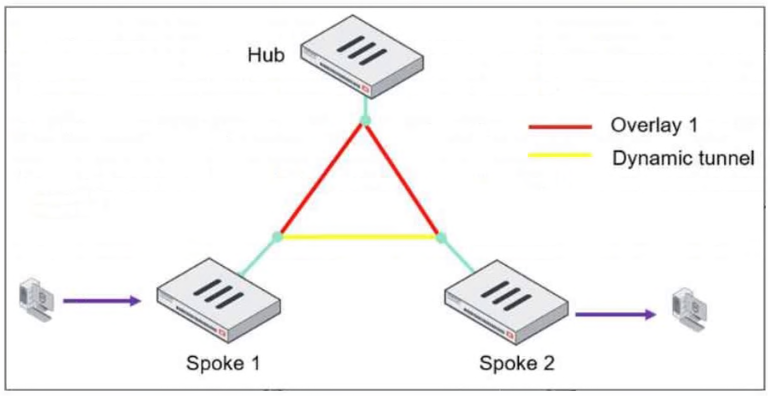

Refer to the exhibit, which shows an ADVPN network.
The client behind Spoke-1 generates traffic to the device located behind Spoke-2.
What is the first message that the hub sends to Spoke-1 to bring up the dynamic tunnel?
- A. Shortcut query
- B. Shortcut offer
- C. Shortcut reply
- D. Shortcut forward
Correct Answer:
B
Explanation:
The AI agrees with the suggested answer, B (Shortcut offer).
Reasoning: When a client behind Spoke-1 initiates traffic destined for a device behind Spoke-2 in an ADVPN network, the hub's initial response to Spoke-1 to establish the dynamic tunnel is a "Shortcut offer." This offer prompts Spoke-1 to negotiate a direct tunnel with Spoke-2, bypassing the hub for subsequent traffic flows. According to the FortiOS documentation and general ADVPN principles, the shortcut offer is the correct first step in this process.
Reasons for not choosing the other options:
- A (Shortcut query): The shortcut query is sent by the spoke (Spoke-1) to the hub, not from the hub to the spoke.
- C (Shortcut reply): The shortcut reply is sent by Spoke-1 to the hub after receiving the shortcut offer, confirming it can establish a direct tunnel.
- D (Shortcut forward): The shortcut forward message is not a standard message in the initial ADVPN shortcut setup.
In summary, the hub initiates the dynamic tunnel creation with a shortcut offer to Spoke-1, which is why option B is the most accurate.
Citations:
- FortiOS 7.4.5 Admin Guide, p. 2259 (Although a direct URL isn't available, this is a reference to the Fortinet documentation)
-
Question 10
What is the initial step performed by FortiGate when handling the first packets of a session?
- A. Installation of the session key in the network processor (NP)
- B. Data encryption and decryption
- C. Security inspections such as ACL, HPE, and IP integrity header checking
- D. Offloading the packets directly to the content processor (CP)
Correct Answer:
C
Explanation:
The AI agrees with the suggested answer, which is option C: Security inspections such as ACL, HPE, and IP integrity header checking.
Reasoning: The initial step FortiGate performs when handling the first packets of a session involves security inspections. This includes verifying Access Control Lists (ACLs), performing heuristic protocol analysis (HPE), and checking IP header integrity. These security inspections are crucial for determining whether the traffic is allowed to proceed further through the FortiGate.
The discussion points to the Fortinet EFW Admin 7.4 Study Guide, indicating that security inspections are part of the initial packet handling process.
Reasons for not choosing other options:
- Option A: Installation of the session key in the network processor (NP) - Session key installation typically occurs after the initial security checks, once a session is deemed legitimate and requires hardware acceleration.
- Option B: Data encryption and decryption - Encryption and decryption are performed on traffic that requires it (e.g., VPN traffic) and is not the initial step for all sessions.
- Option D: Offloading the packets directly to the content processor (CP) - Offloading to the content processor usually occurs after initial security checks and when content-based inspection is required.
